Industrial application | Factory Production automation (II)

As industrial automation to the integration of network, artificial intelligence, the development trend of global systematic direction, in order to meet the requirements of the sustainable development of the industry, komi hirose in view of the needs in the use of increasingly stringent environment and reliable operation of the factory automation equipment introduced our [small], [high], [power change], such as solution, Our goal is to pursue thorough reliability and ease of use.

After the previous article introduced you to some of the categories of product applications available in the field of industrial production automation, this week will continue to introduce other categories covered

01
inverter
?? slabs line
?? I/O
?? slabs board

?? slabs line

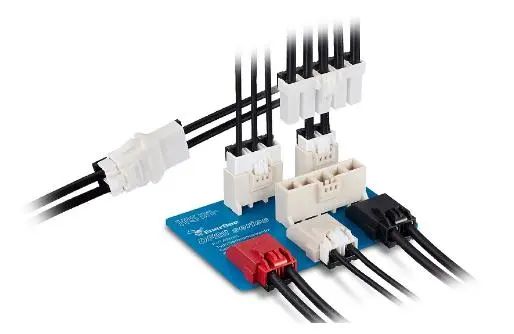

DF22 series are recommended
The characteristics of
[EnerBee ?]
Support maximum current 30A, power supply, board to wire connector
1. Correspond to high current
2. Anti-misinsertion design
3. Support resin sealing

?? I/O

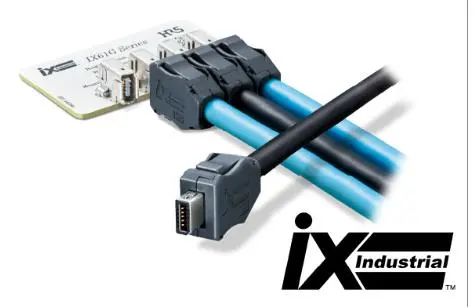

IX series
The characteristics of
[ix Industrial ?]
IEC compliant small Ethernet connectors for industrial equipment
1. Facilitate the miniaturization of equipment
2. One-key locking structure
3. Anti-warping structure
4. Excellent EMC endurance
5. Support high-speed transmission
6. Supports THR(through-hole reflux) installation

?? slabs board
Recommend FX18 series
1. The 0.8 mm spacing
2. MF terminal, various uses
3. Effective chimeric length 2mm (signal terminal)
4. Dip terminals fixed on both sides of the connector of the substrate can enhance the upper, lower, left and right distortion resistance.
5. Guided design is convenient for chimerism

02 Motor drive
?? slabs line
?? I/O
?? slabs board
?? Wire-to-wire connector

?? slabs line
DF51 series is recommended
The characteristics of
[SignalBee ?]
1. Complete locking structure, providing clear locking sense and reliable connection
2. Rich selection, side lock structure
3. Anti-misinsertion design
4. Can share crimping terminals and tools with DF11 series
5. Support glue filling (resin filling)
6. Comply with UL,C-UL standard
* Also provide center lock products (DF51K series)

?? I/O
IX series
The characteristics of
[ix Industrial ?]
IEC compliant small Ethernet connectors for industrial equipment
1. Facilitate the miniaturization of equipment
2. One-key locking structure
3. Anti-warping structure
4. Excellent EMC endurance
5. Support high-speed transmission
6. Supports THR(through-hole reflux) installation

?? slabs board

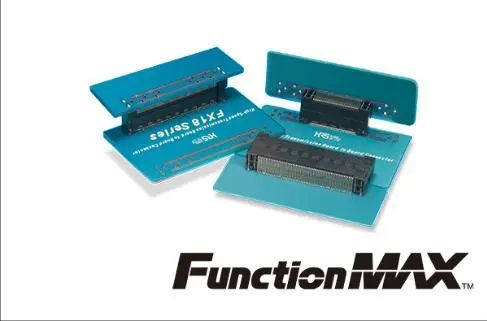

Recommend FX27 series
The characteristics of
[FunctionMAX ?]
Flange connection floating connector for connections between substrates with 0.8mm spacing
1. Free height: The stack height is 22mm
2. Floating variable X direction :± 0.6mmmax; Y direction: + / - 0.6 mmMAX
3. Transmission speed:
2.5 Gbps (PCIe - Gen. 1)
4. Trunk substrate customization
5. Current capacity :0.5A/ PIN
6. Corresponding automatic installation (standard attached with suction tape)

?? Wire-to-wire connector
The DF63W series is recommended
The characteristics of
[EnerBee ?]
IP67 waterproof, slim type relay connector for internal power
1. Small corresponding current up to 14A(when using AWG#16 and 2 cores)
2. Slim and smooth shape for narrow wiring
3. Corresponding to IP67 waterproof grade
4. Waterproof and easy to assemble, only need to insert crimping terminal
5. Clear locking sense ensures effective locking

03 motor
?? I/O
?? Wire-to-wire connector
?? slabs line
?? slabs board

?? I/O
LF series
The characteristics of
Small waterproof shielded connector
1. It is easy to connect shielded cables
2. Waterproof structure :IP67, IP68 (in chimeric state)
3. Easy assembly
4. Latch and lock
5. Obtain safety specifications
· 4-core 10A to obtain TUV
· 3 cores and 4 cores obtained UL

?? Wire-to-wire connector

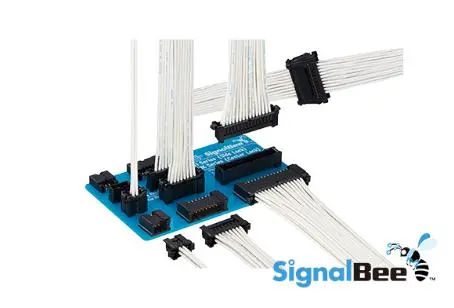

DF62 series are recommended
[SignalBee ?]
2 x 2.2 mm pitch Slim relay connector for tight Spaces (UL C-UL certified product)
1. Slim and smooth shape is suitable for wiring in narrow space
2. Clear locking sense and visual confirmation of locking
3. Reliable contact structure
4. Solid terminal structure
5. It can share automatic pressing equipment with DF11/DF59 series
6. Anti-condensation measures (waterproof DF62W)

?? slabs line

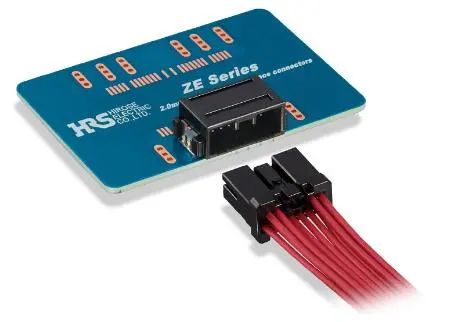

Recommended ZE05 series
The characteristics of
Connector for vehicle-mounted interface, type 0.5 /2mm spacing
1. Space saving (0.5 type terminal, 2mm spacing)
2. High heat resistance 125℃
3. High vibration resistance
4. Rated current 5A(monopole current) /2A(24 cores)
5. Retainer can ensure 40N tensile strength

?? slabs board
Recommend FX18 series
1. The 0.8 mm spacing
2. MF terminal, various uses
3. Effective chimeric length 2mm (signal terminal)
4. Dip terminals fixed on both sides of the connector of the substrate can enhance the upper, lower, left and right distortion resistance.
5. Guided design is convenient for chimerism

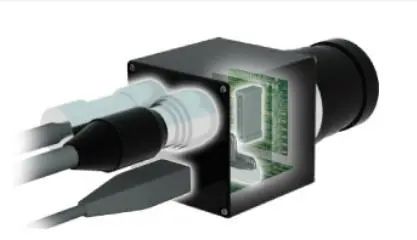

04 Industrial Camera
?? FPC/FFC connector
?? I/O
?? slabs board
?? slabs line

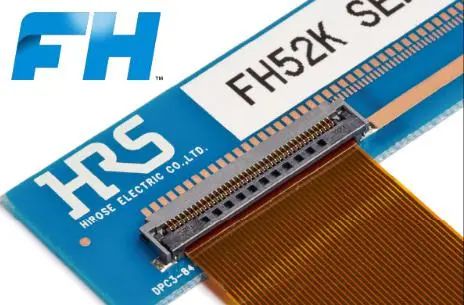

FH52K series is recommended
The characteristics of
0.5mm pitch,2mm high
1. Corresponding to 125℃ high temperature resistance, through a variety of stringent vehicle test conditions
2. Unique terminal design to achieve a firm lock structure
3. Protruding structure improves FPC/FFC holding force
4. L-shaped reinforced metal parts provide easy appearance inspection & improve peel strength
5. There is no forbidden conductor area on the bottom of the connector
6. Corresponding to automatic installation
7. RoHS compliant, halogen-free products

?? I/O

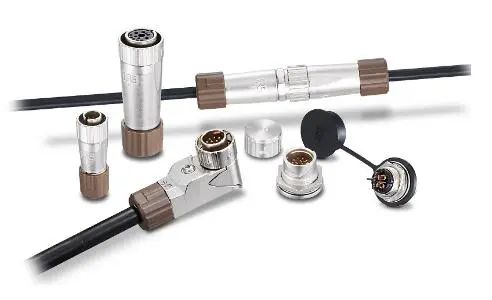

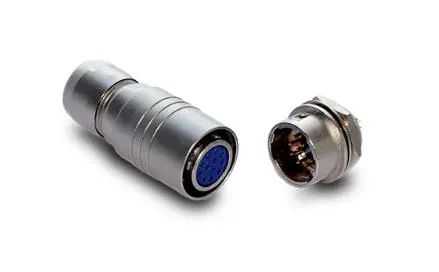

HR10 series are recommended
The characteristics of
High performance, small circular connector
1. Miniaturization, high density, high reliability and simple design
2. Easy to plug and remove

?? slabs board
DF12N series are recommended
The characteristics of
0.5mm pitch, SMT board to board connector
1. Rich selection of plate size
2. Support automatic installation
3. Reinforcing metal tools in welding department

?? slabs line

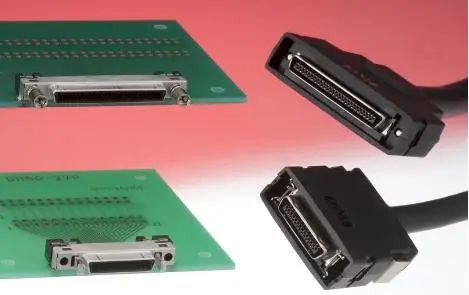

Recommended DH Series
High speed transmission with 1mm pitch small interface connector
1. Miniaturized design (the opening area is reduced by about 50% compared with the half-pitch connector)
2. Solid structure
3. Unique crimping structure
4 EMI resistant shielding structure
5. Abundant selection
6. High-speed transmission
